What Is Glass Cloth Tape Used For? Applications and Selection Guide
Glass cloth tape is used for high-temperature masking, harness wrapping, bundling, holding and panel seaming. This guide focuses on adhesive-backed fiberglass cloth tape for industrial wrapping, masking and assembly. Choosing the right grade means matching its construction to your surface, temperature exposure and process.
Application images are AI-generated illustrations of typical uses, not photographs of customer installations.
What is glass cloth tape?
Glass cloth tape combines a woven fiberglass backing with an adhesive layer. Also described as fiberglass cloth tape or glass fabric tape, it provides a reinforced backing for demanding industrial applications. Performance depends on the complete tape construction, including the adhesive, rather than the glass fibers alone.
What is glass cloth tape used for?
Harness wrapping and bundling
Glass cloth tape can hold insulated wires together and wrap selected sections of a harness. Plan the wrap around connector access, bend radius and operating conditions. Electrical insulation applications require a grade qualified for the intended insulation system; general harness wrapping does not establish electrical approval.
Panel seaming and holding
Use a suitable grade to cover joints between compatible panels or hold components during assembly. Check adhesion on the actual finish and inspect the seam after representative exposure. Seam-covering tape should not be assumed to replace structural fasteners or provide a certified weatherproof seal.
Choosing fiberglass tape for high-temperature masking
Evaluate both temperature and exposure time, along with surface finish, chemicals and removal requirements. Test a representative sample through the complete process cycle. Read our high-temperature masking tape guide for a broader selection overview.
How to choose fiberglass adhesive tape for your application
- Define the application: wrapping, holding, seaming and removable masking have different requirements.
- Check temperature and duration: confirm whether the published limit applies to continuous service or a short process cycle.
- Confirm adhesive compatibility: verify adhesive type, surface compatibility, chemical exposure and removal requirements.
- Measure width and thickness: use total thickness for clearance calculations and allow for overlaps in wrapped areas.
- Test the assembly: inspect adhesion, edges and residue after exposure to intended conditions.

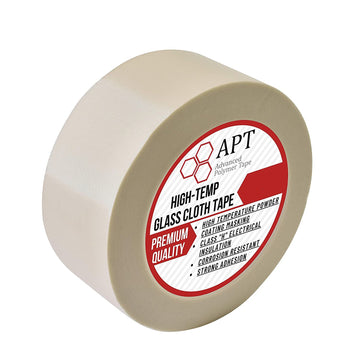

Glass Cloth Tape
Fiberglass-backed tape for masking, wrapping, bundling and holding. Choose from five widths, each in a 36-yard roll.
Shop Glass Cloth TapeAPT Glass Cloth Tape specifications
The APT Glass Cloth Tape listing provides the following values. Confirm current technical data and suitability for your process before specifying the tape.
| Property | Listed specification |
|---|---|
| Backing thickness | 5 mil (0.127 mm) |
| Total thickness | 7 mil (0.178 mm) |
| Adhesion to steel | 35 oz/in |
| Tensile strength | 180 lb/in |
| Elongation | 5% |
| Dielectric strength | 3,000 V |
| Operating temperature range | −73°C to 260°C (approximately −99°F to 500°F) |
| Roll sizes | 1/2, 1, 2, 3 and 4 inches wide × 36 yards |
Dielectric strength is not an approved working-voltage rating. The listing does not specify temperature exposure duration; confirm this detail for your application.
Frequently asked questions
Which width should I choose for wrapping and seaming?
For wrapping, choose a width that follows the bundle contours while leaving connectors accessible. For panel seams, allow enough tape to contact both sides of the joint. Account for overlaps and the 7 mil total tape thickness when checking clearance.
Is glass cloth tape the same as PTFE glass cloth tape?
No. PTFE glass cloth tape has a PTFE-coated or impregnated glass cloth backing intended to provide a release surface. For heat-sealer or non-stick applications, review the separate Teflon Glass Cloth Tape product and confirm the grade required. Read our PTFE tape types guide to compare constructions, or our PTFE heat-sealer tape selection guide for help choosing dimensions and adhesive.
What is glass cloth electrical tape?
This describes glass cloth tape intended for electrical insulation. Select using the specific grade's electrical, thermal and approval data. Not every glass cloth tape is interchangeable with an electrical grade.
Is heat-resistant glass cloth tape fireproof?
A temperature rating does not establish fireproof performance or flame certification. Request the documented test or approval when your specification requires it.
How do I apply it?
Start with a clean, dry, compatible surface and follow supplier guidance. Use a cleaning method suitable for the substrate, let it dry, then press the tape evenly into contact. Check the bond and any removal requirements on a small sample first.
