Glass Cloth Tape
Glass Cloth Tape
7 mil total thickness · Fiberglass backing
Couldn't load pickup availability

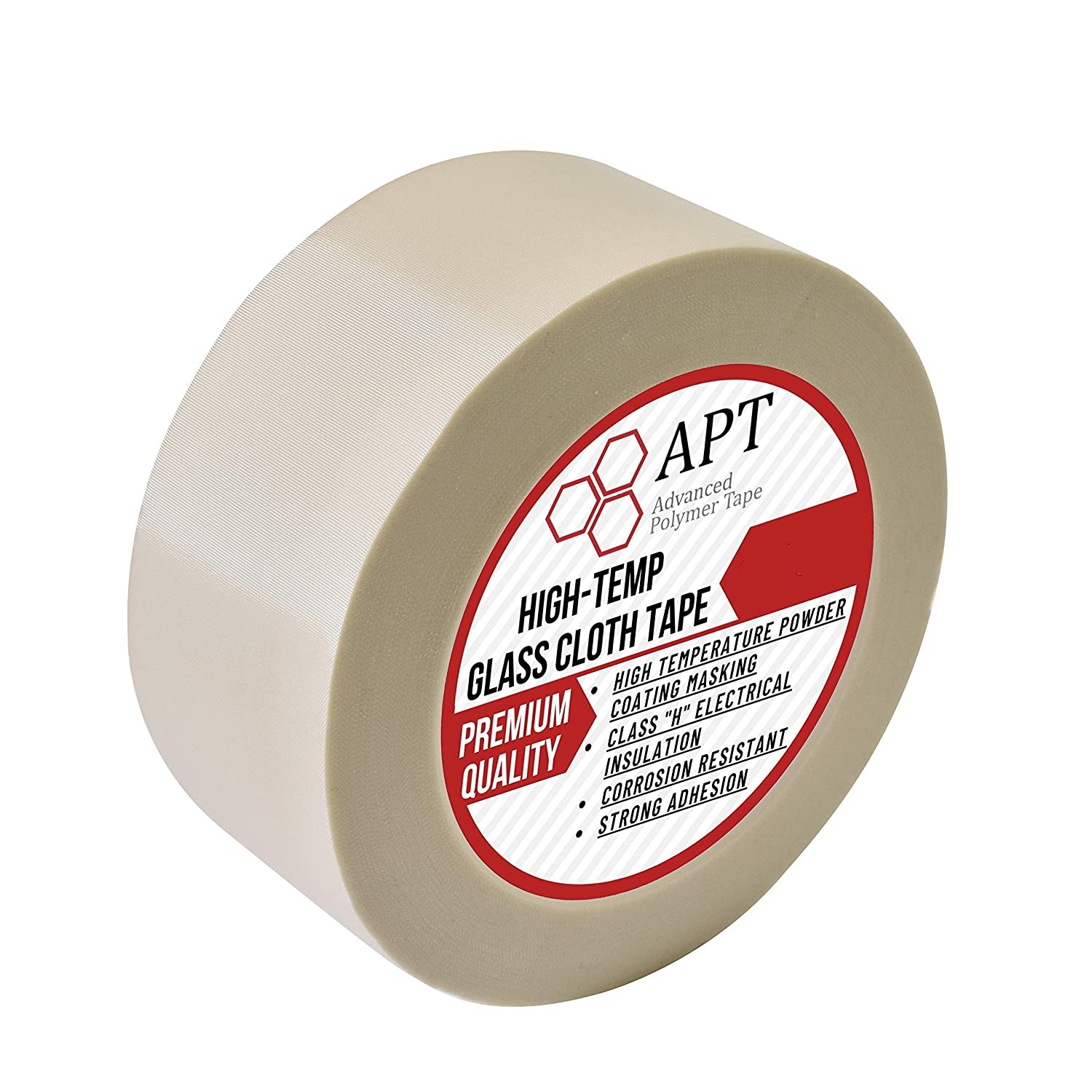

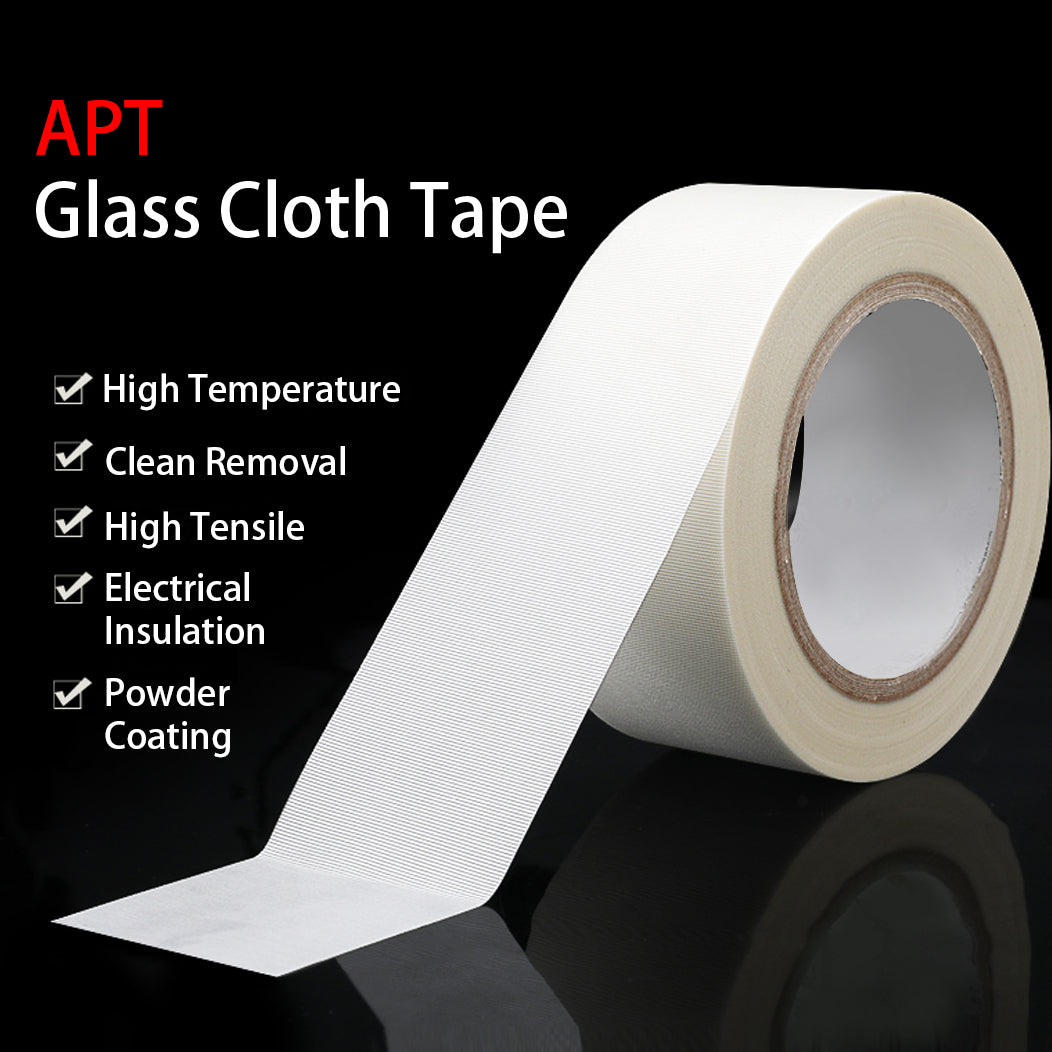

APT Glass Cloth Tape is a strong, durable, fiberglass-backed tape designed to perform at high temperatures. It is used in aerospace, automotive, military, roofing, specialty vehicle and shipbuilding industries for seaming and sealing panels, high-temperature masking, bundling, holding and harness wrapping.
- Backing: Fiberglass cloth
- Roll length: 36 yards
- Available widths: 1/2, 1, 2, 3 and 4 inches

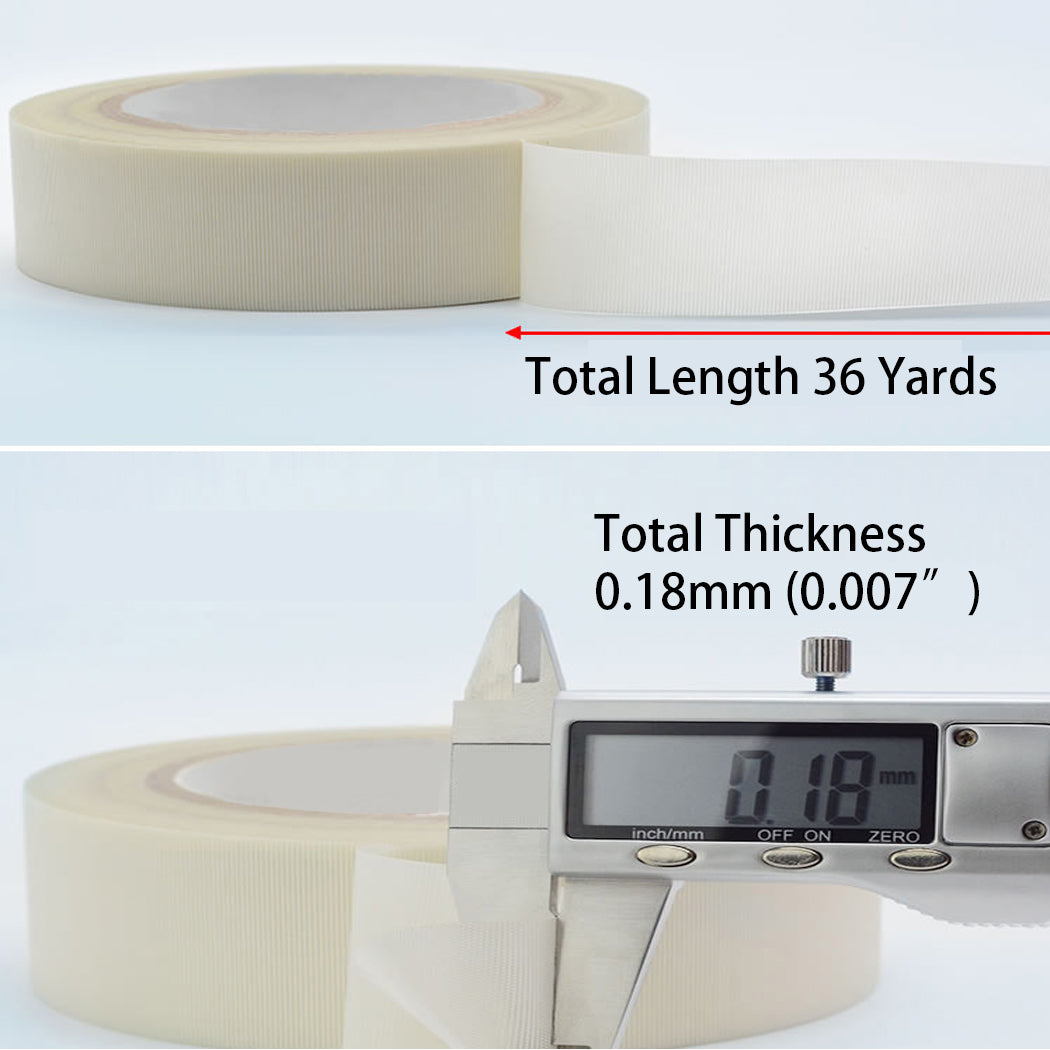

- Thickness: 5 mil backing; 7 mil total tape thickness
Glass cloth tape specifications
| Property | Listed value |
|---|---|
| Backing thickness | 5 mil |
| Total thickness | 7 mil |
| Adhesion to steel | 35 oz./in |

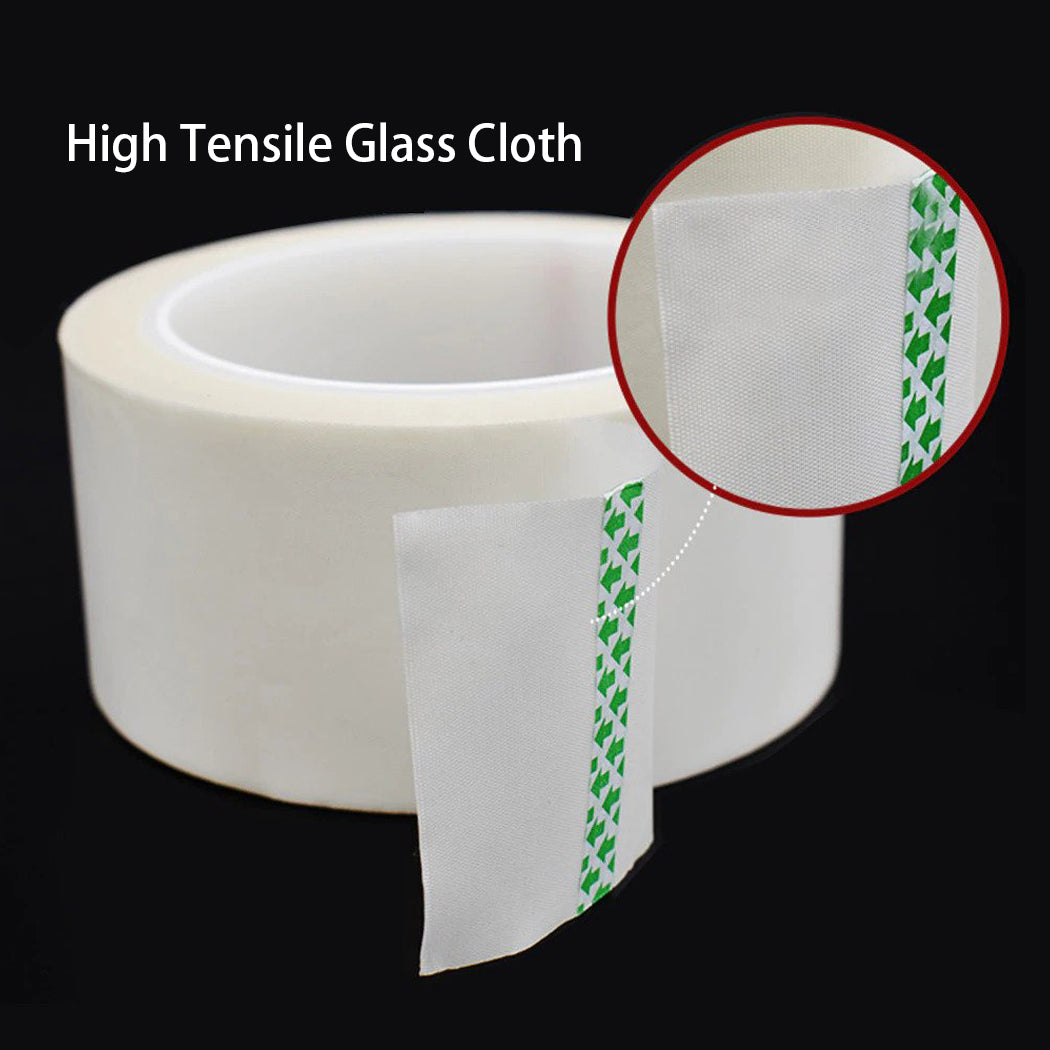

| Tensile strength | 180 lbs./in |
| Elongation | 5% |
| Dielectric strength | 3,000 volts |
| Operating temperature range | −73°C to 260°C |
Our Glass Cloth Tape may be used as an alternative to:
| APT Product | Comparable Products |
|---|---|
| Glass Cloth Tape | ·3M 361 ·3M 69 · Nitto/Permacel P-212 · Specialty Tapes S1199 · Greenbelting Industries 160-5S · Ideal IT-7300 |
Product suitability may vary depending on application requirements.
Glass cloth tape applications

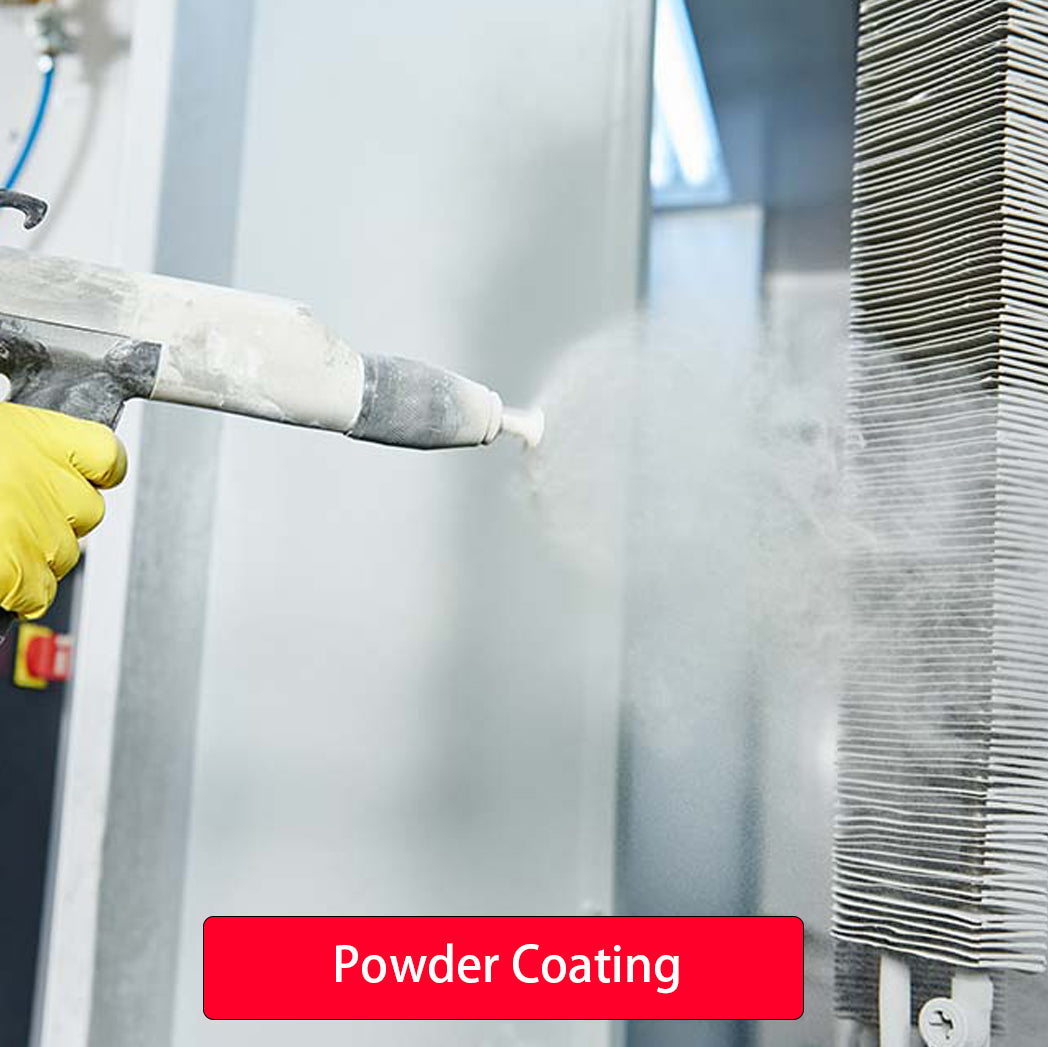

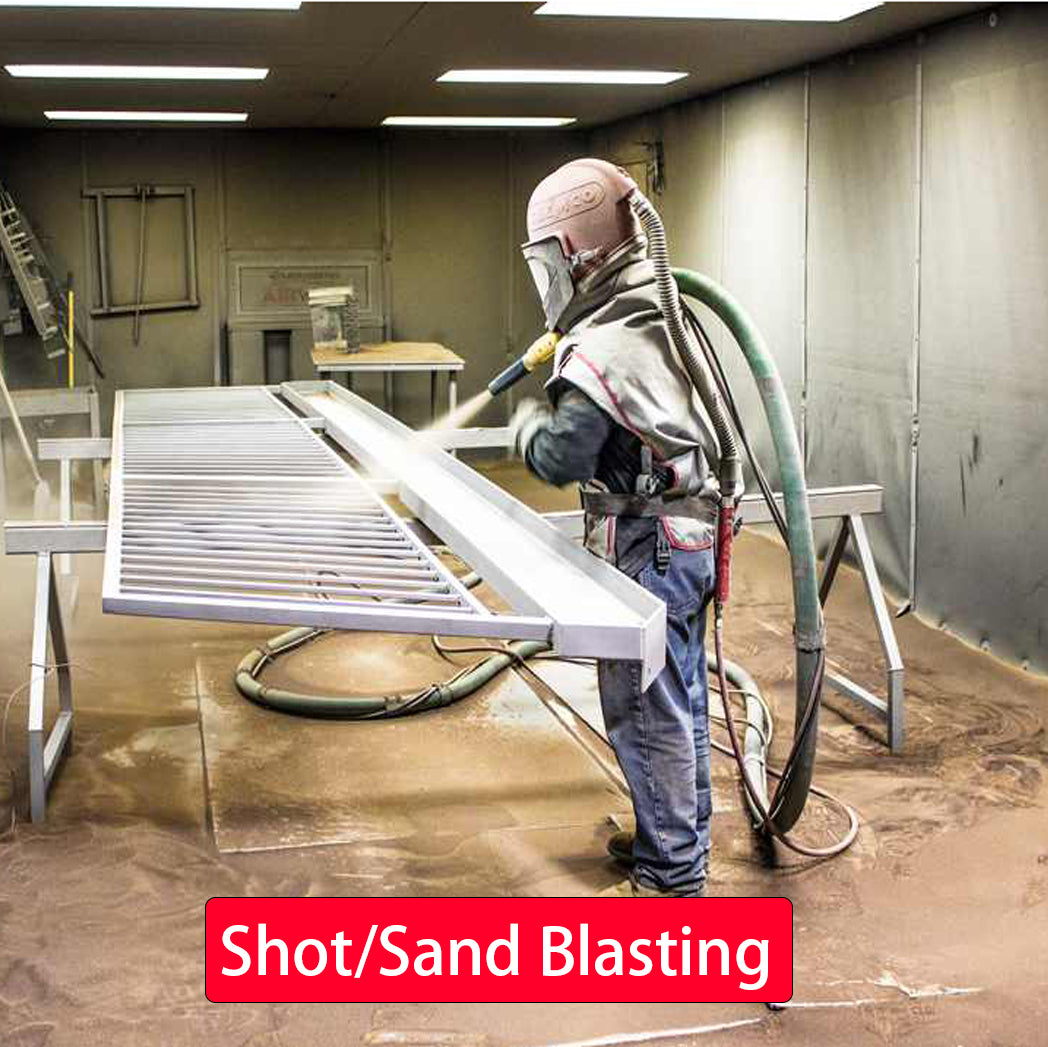

- High-temperature masking
- Bundling and holding

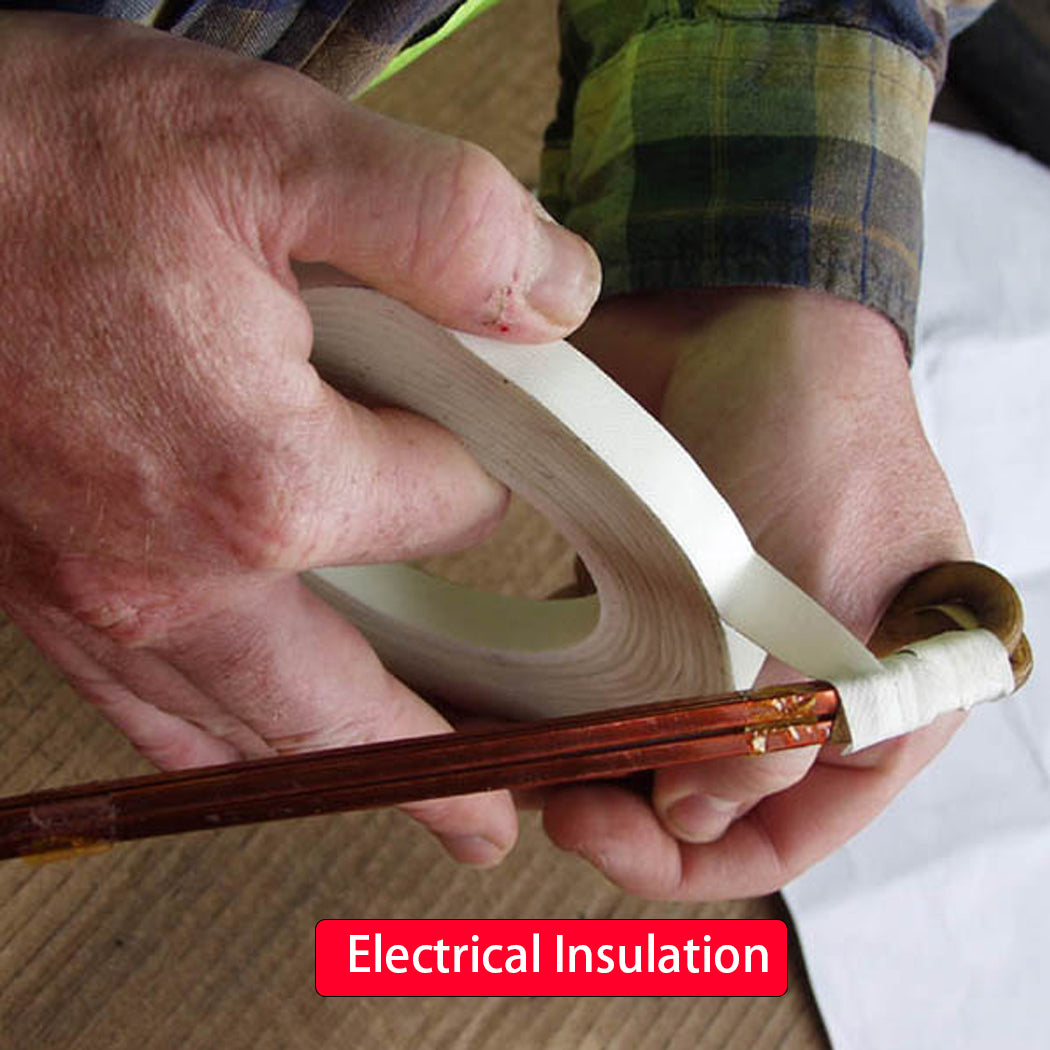

- Harness wrapping
- Seaming and sealing panels
Choose a glass cloth tape width
Select from 1/2, 1, 2, 3 and 4-inch widths. Each roll is 36 yards long. For a larger order or a custom size, use the Request a Quote button.
Glass cloth tape questions
What is glass cloth tape used for?
Glass cloth tape is used for high-temperature masking, bundling, holding, harness wrapping, and seaming and sealing panels.
What is the listed temperature range?
The listed operating temperature range is −73°C to 260°C. Confirm suitability for your application’s exposure time and operating conditions before use.
What sizes are available?
Rolls are available in 1/2, 1, 2, 3 and 4-inch widths, each with a length of 36 yards.
-
