Advanced Polymer Tape Inc.

Polyimide Dots

Polyimide Dots

Regular price $20.00
Regular price Sale price $20.00
Sale Sold out
Shipping calculated at checkout.
Size
Quantity

Request a Quote

View full details

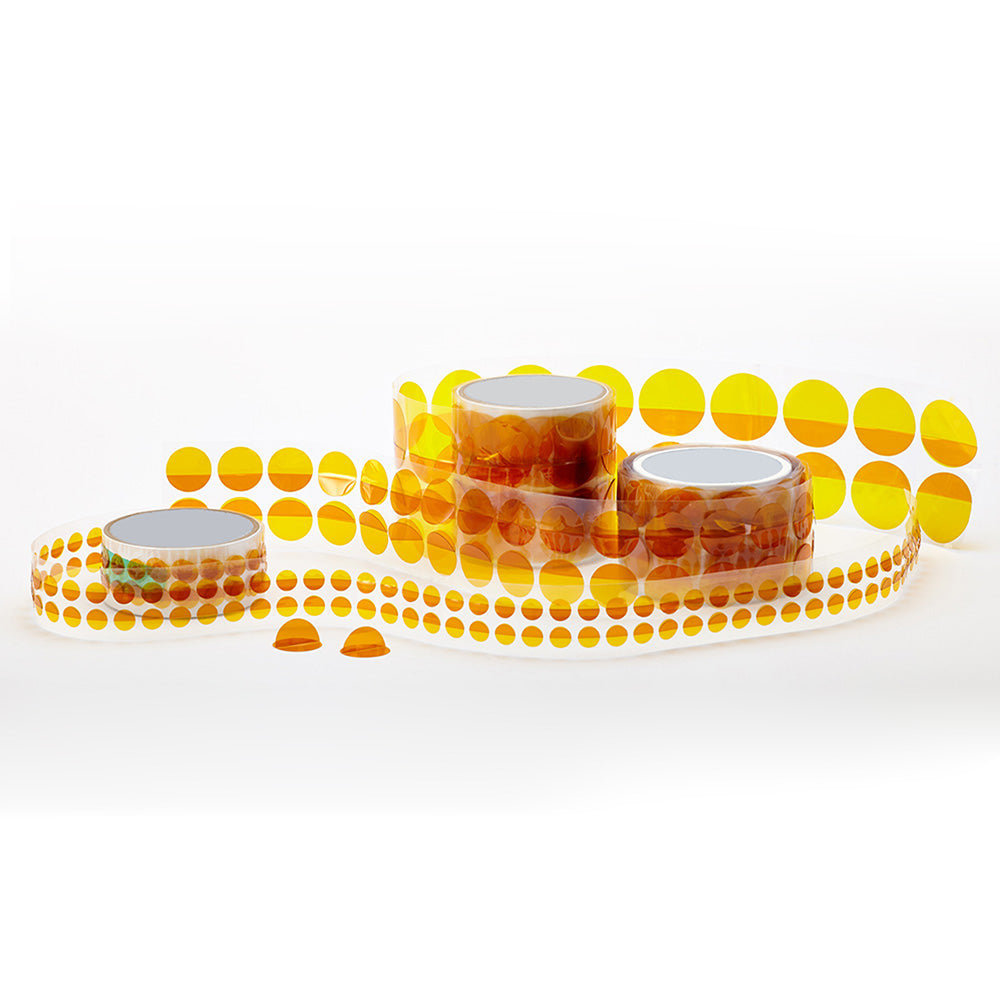

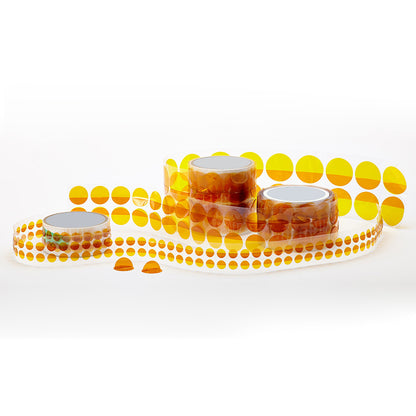

APT Polyimide Dots are pre-cut polyimide masking dots and discs made from a conformable 1 mil film with silicone adhesive. They are designed for high-temperature electronics masking, including PCB conformal coating and protection of gold fingers during circuit board soldering.

  • Backing: 1 mil polyimide film
  • Total thickness: 2.5 mil, including 1.5 mil silicone adhesive
  • Listed temperature rating: 500°F / 260°C
  • Standard diameters: 1/8 inch to 2 inches

Polyimide masking dot specifications

Property Listed value
Backing Polyimide film
Backing thickness 1 mil
Adhesive Silicone
Adhesive thickness 1.5 mil
Total thickness 2.5 mil
Temperature rating 500°F / 260°C
Tensile strength 30 lb/in
Adhesion to steel 25 oz/in
Dielectric strength 6,500 V/mil

Polyimide masking disc applications

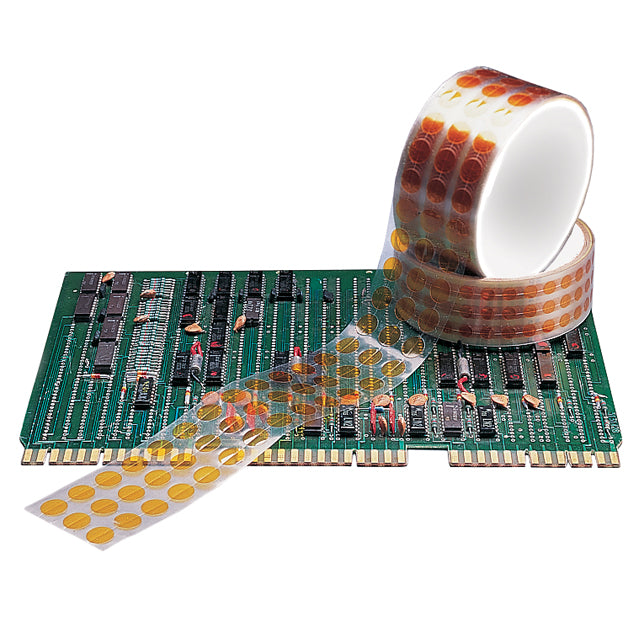

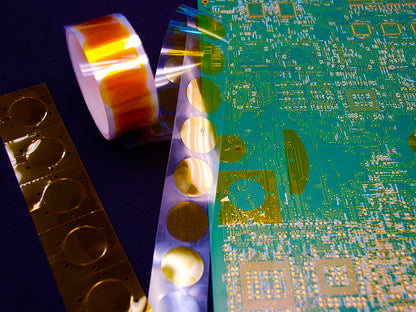

  • PCB conformal coating masking
  • Gold finger protection during circuit board soldering
  • Wave soldering and hot air leveling
  • Powder coating and e-coating
  • Circuit board insulation and electrical insulation of high-temperature coils, motors and transformers

The thin polyimide backing conforms to uneven surfaces and irregular shapes. Product features include chemical resistance, flame retardancy and compliance with Class H requirements.

Designed for clean removal after processing. Confirm temperature, exposure time, surface, chemical compatibility and electrical requirements for your application before use.

Choose a masking disc diameter

Available diameters: 1/8, 1/4, 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1.5 and 2 inches.

  • 1/8, 1/4, 3/8 and 1/2 inch: 2,000 discs per roll
  • 5/8, 3/4 and 7/8 inch: 1,000 discs per roll
  • 1 and 1.5 inches: 500 discs per roll
  • 2 inches: 250 discs per roll

Discs 3/8 inch or larger include a split-back liner. Split liners for smaller diameters are available on request. Contact us for custom sizes or larger orders.

Compare paper, polyester and polyimide masking dots to select a material for your process.

Polyimide masking dot questions

What are polyimide masking dots used for?

Polyimide dots mask circular areas during PCB conformal coating, circuit board soldering, wave soldering and hot air leveling. They are also listed for powder coating, e-coating and electrical insulation applications, subject to the requirements of the actual process.

What is the temperature rating of these polyimide dots?

The listed temperature rating is 500°F / 260°C. Confirm exposure time, surface and chemical compatibility for your application before use.

Does the 2.5 mil thickness include adhesive?

Yes. The total thickness is 2.5 mil, consisting of 1 mil polyimide film and 1.5 mil silicone adhesive.

What diameters and roll quantities can I order?

Standard diameters range from 1/8 inch to 2 inches. The 1/8, 1/4, 3/8 and 1/2 inch sizes have 2,000 dots per roll; 5/8, 3/4 and 7/8 inch have 1,000; 1 and 1.5 inches have 500; and 2 inches have 250. Check the selected product option before ordering.

Do polyimide dots include a split-back liner?

Dots 3/8 inch or larger include a split-back liner. Split liners for smaller diameters are available on request.

Will polyimide masking dots remove cleanly?

They are designed for clean removal after processing. Test on the actual surface under your production temperature, exposure time and chemical conditions before full use.

Can I request custom polyimide dot sizes?

Custom sizes and split liners for smaller diameters are available on request. Contact APT with your diameter, quantity and operating requirements.
