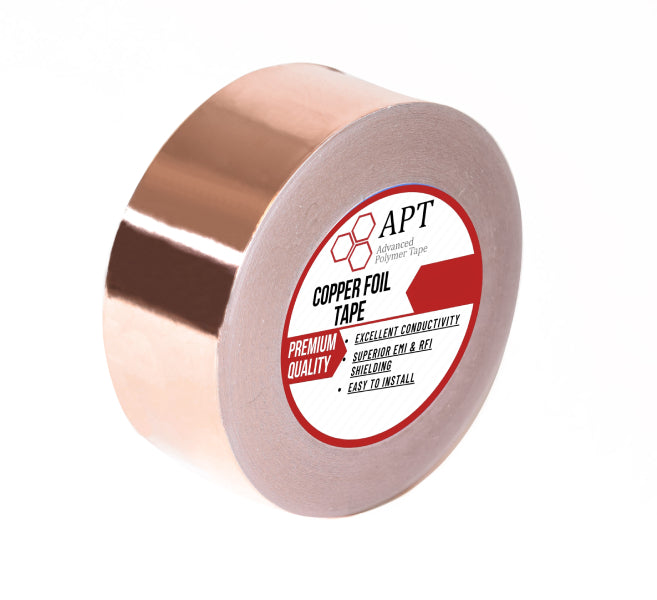

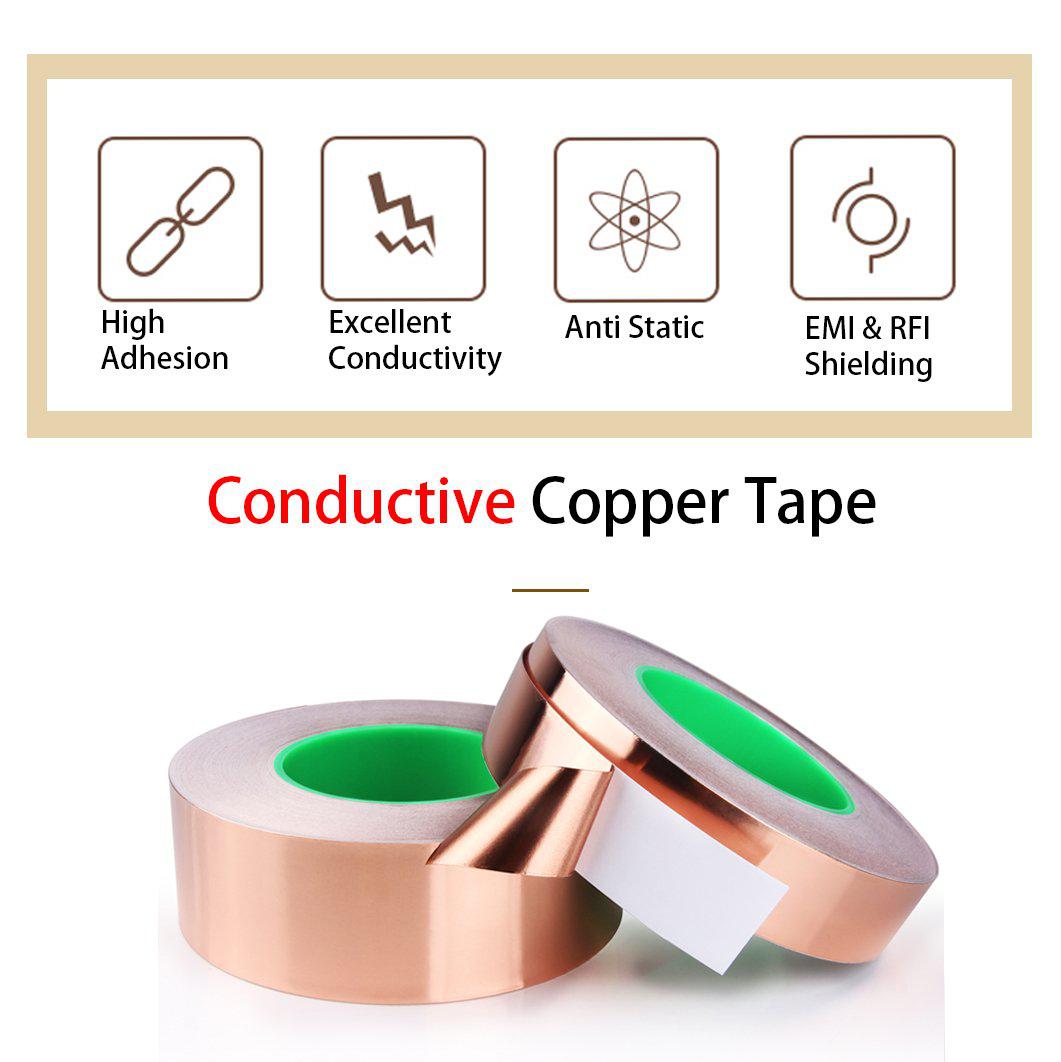

This 1.4 mil copper foil is electrically conductive with pressure-sensitive acrylic adhesive.
The backing is an electrolytic grade, high tensile copper, which is extremely malleable and accepts solder. Combining with the aggressive adhesive makes it suitable for a broad range of industrial and electrical applications.

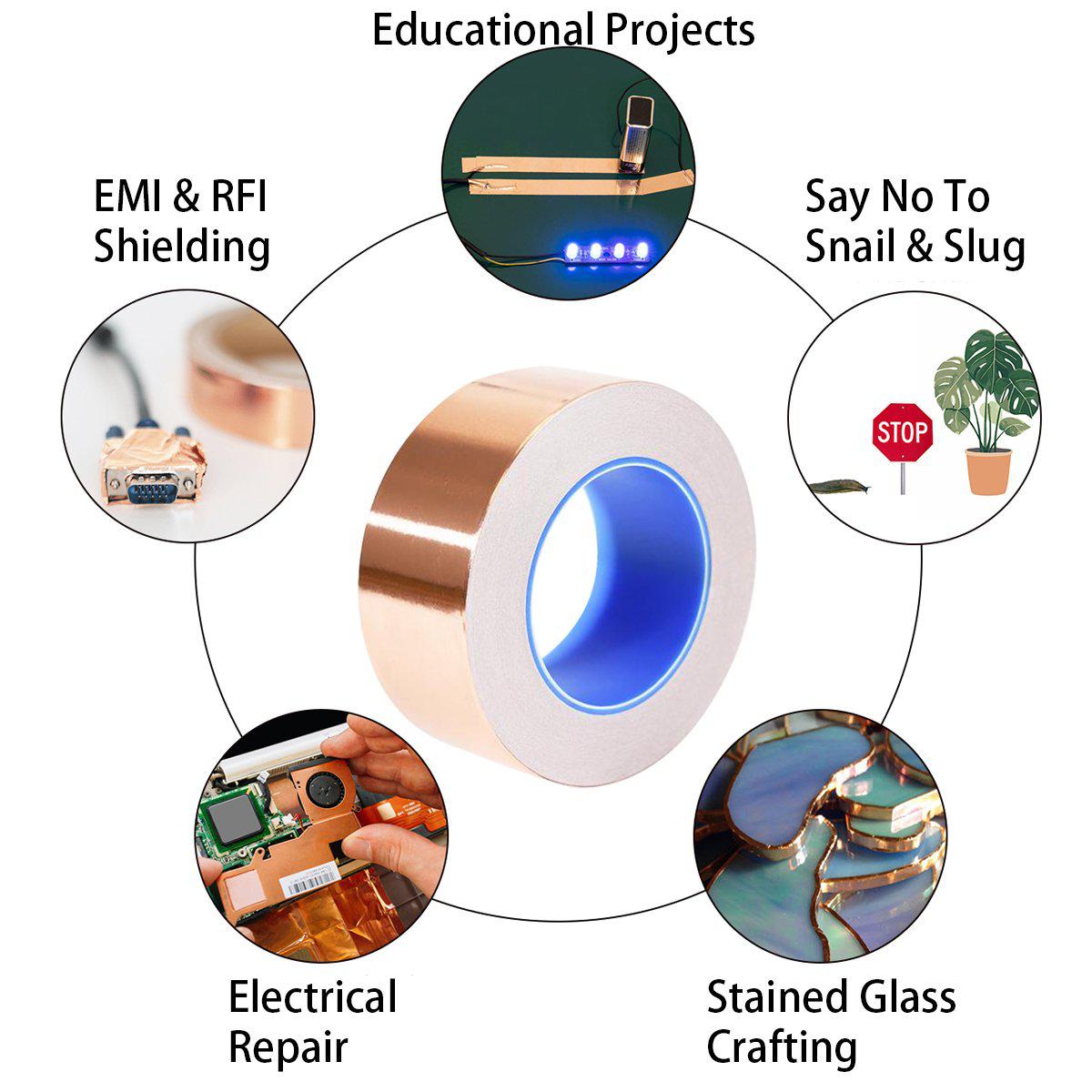

Applications

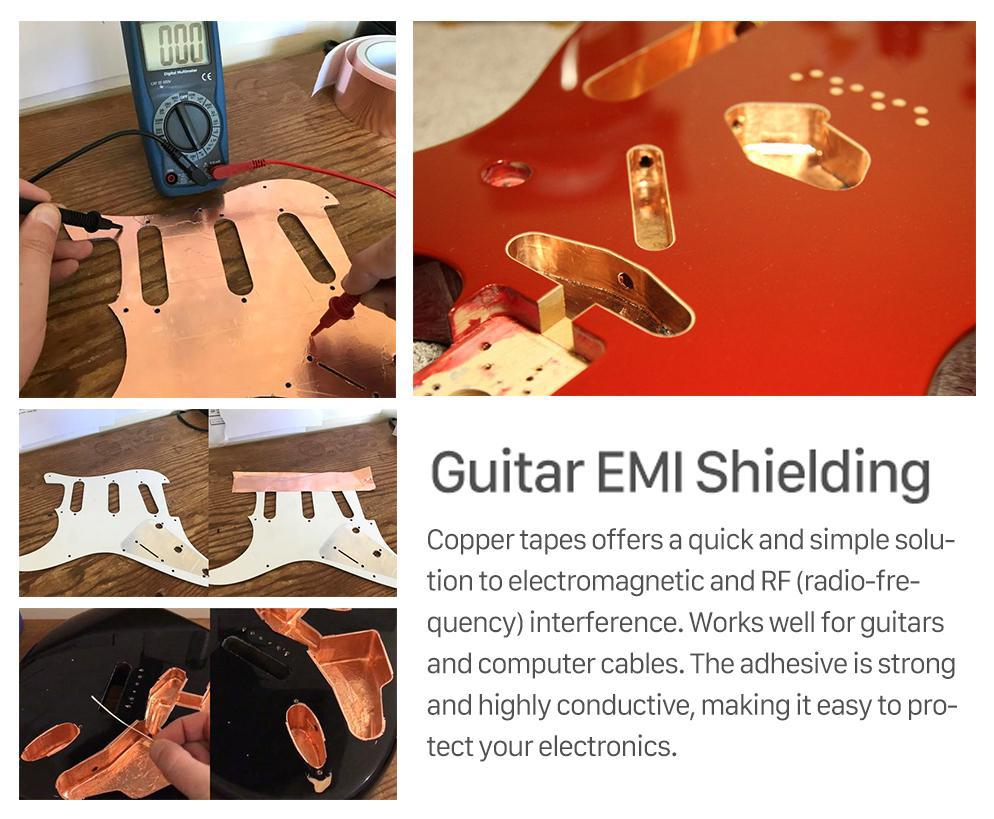

RFI/EMI (electromagnetic interference/radio-frequency interference) shielding applications in the electrical/electronics industry (used to shield integrated circuit chips, cables, and motors).
Printed circuit board manufacture and repair, DIY craft projects, and even protects your garden from snails.
Specifications
- Backing Thickness: 1.4 mil
- Total Thickness: 2.6 mil
- Adhesion to Steel: 40 Oz./in
- Tensile Strength: 25 lbs./in

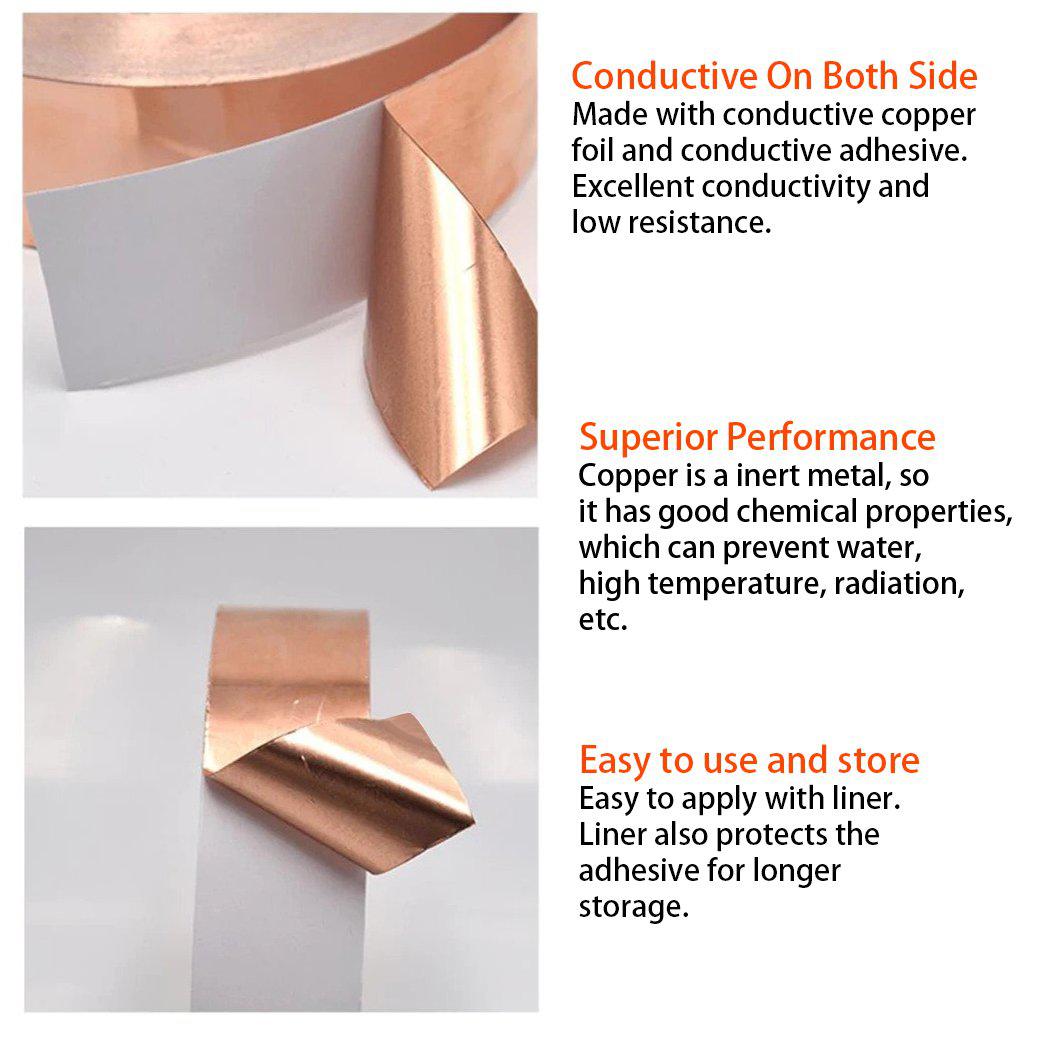

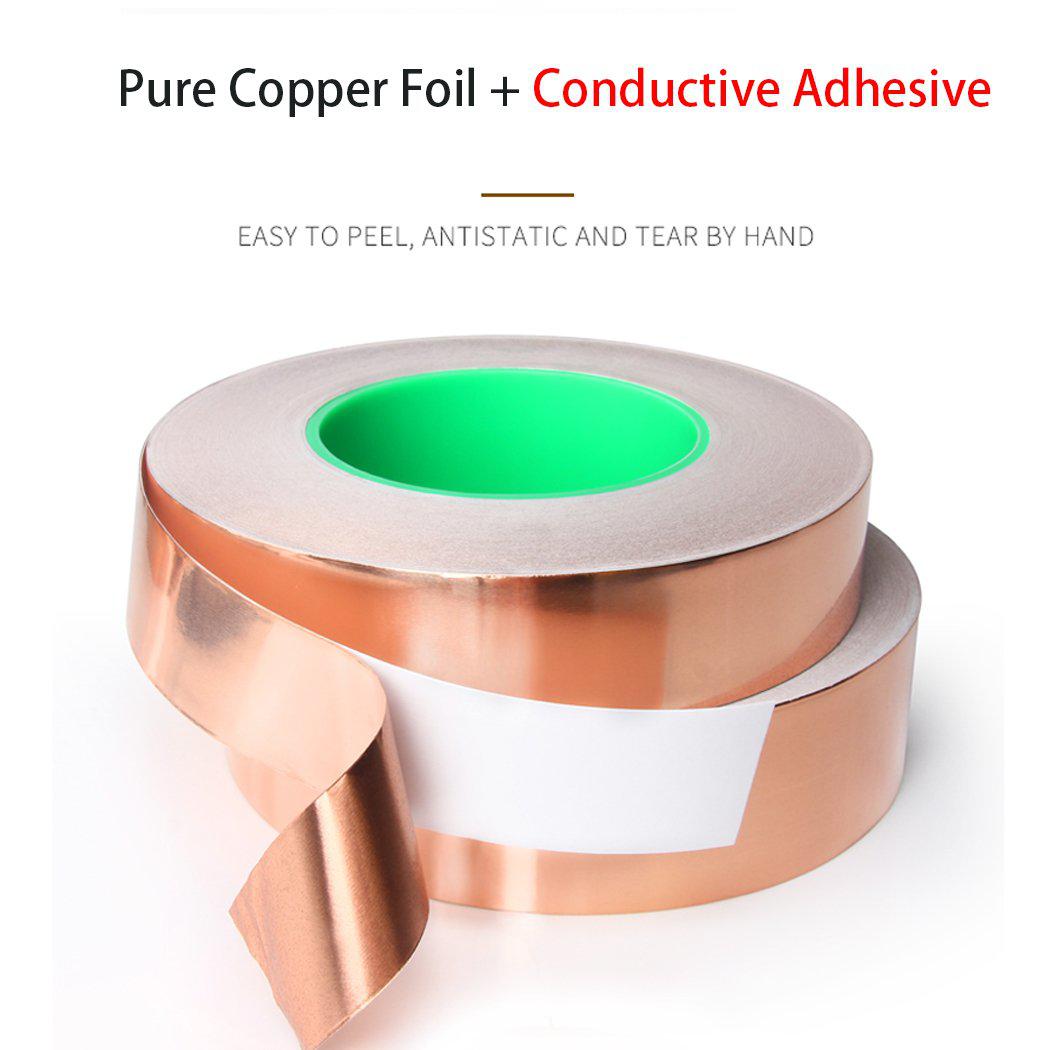

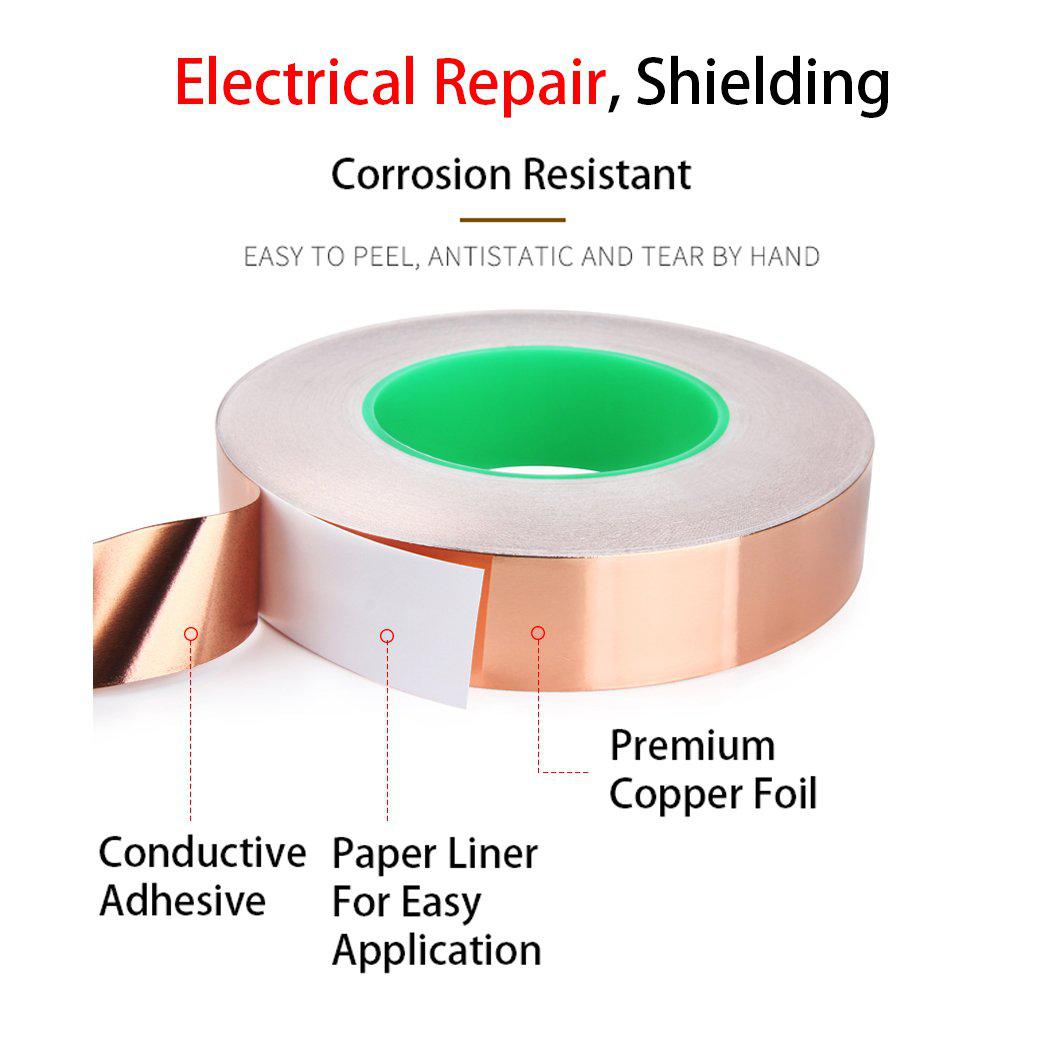

Construction
- Backing: Copper foil
- Adhesive Liner: Conductive Acrylic
- Liner: Paper
