PTFE Adhesive tapes made using PTFE impregnated glass cloth with silicone adhesive on one side.
PTFE glass cloth tapes can resist temperature of -70 ~ 200 °C. The width of PTFE tape can be customized as requested. This tape also has a yellow paper liner option.
With its ability to resist high temperatures and various chemicals, the PTFE tape has a broad application in LCD, FPC, PCB, Packing, sealing Battery manufacturing, dying, aerospace and mold releasing or other industries.

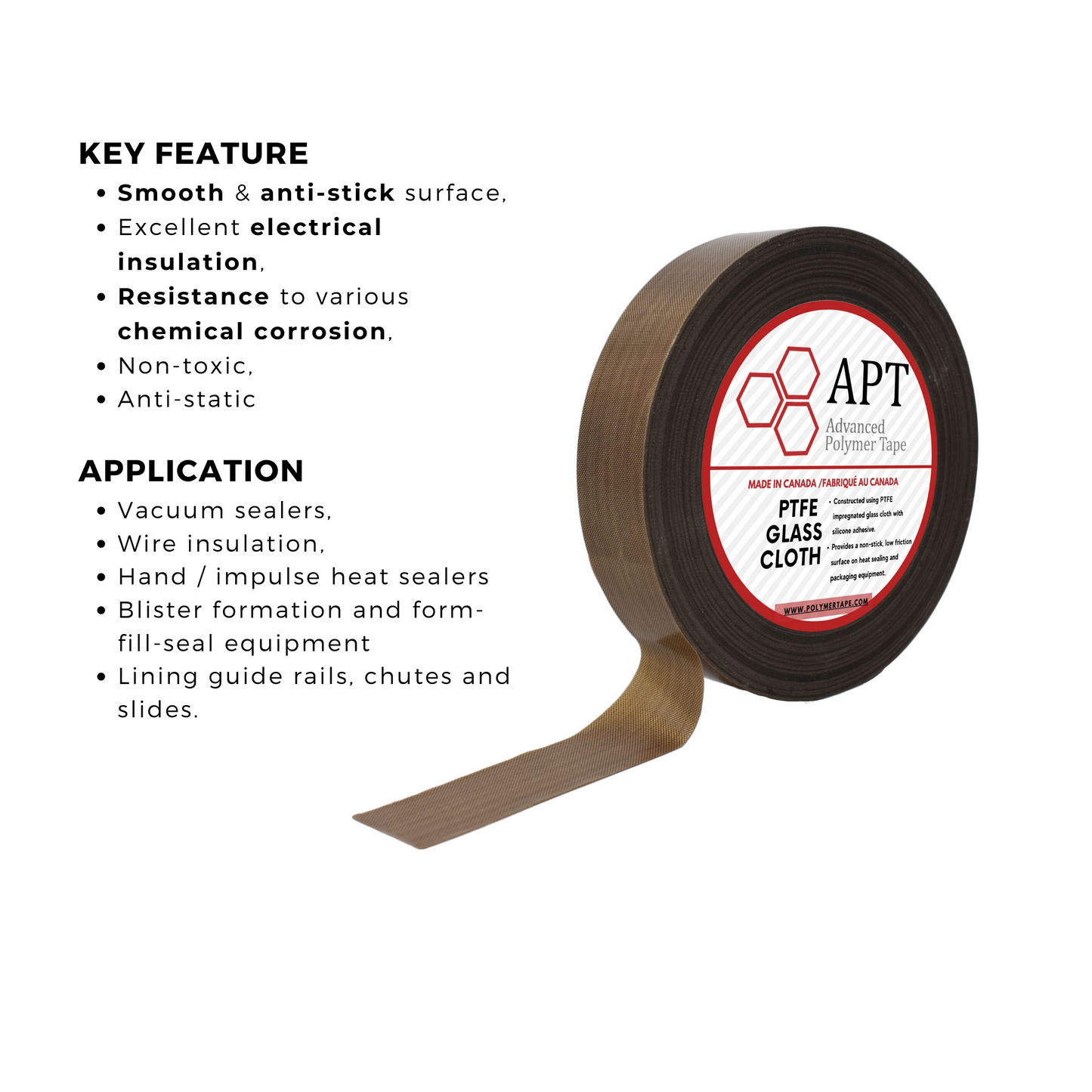

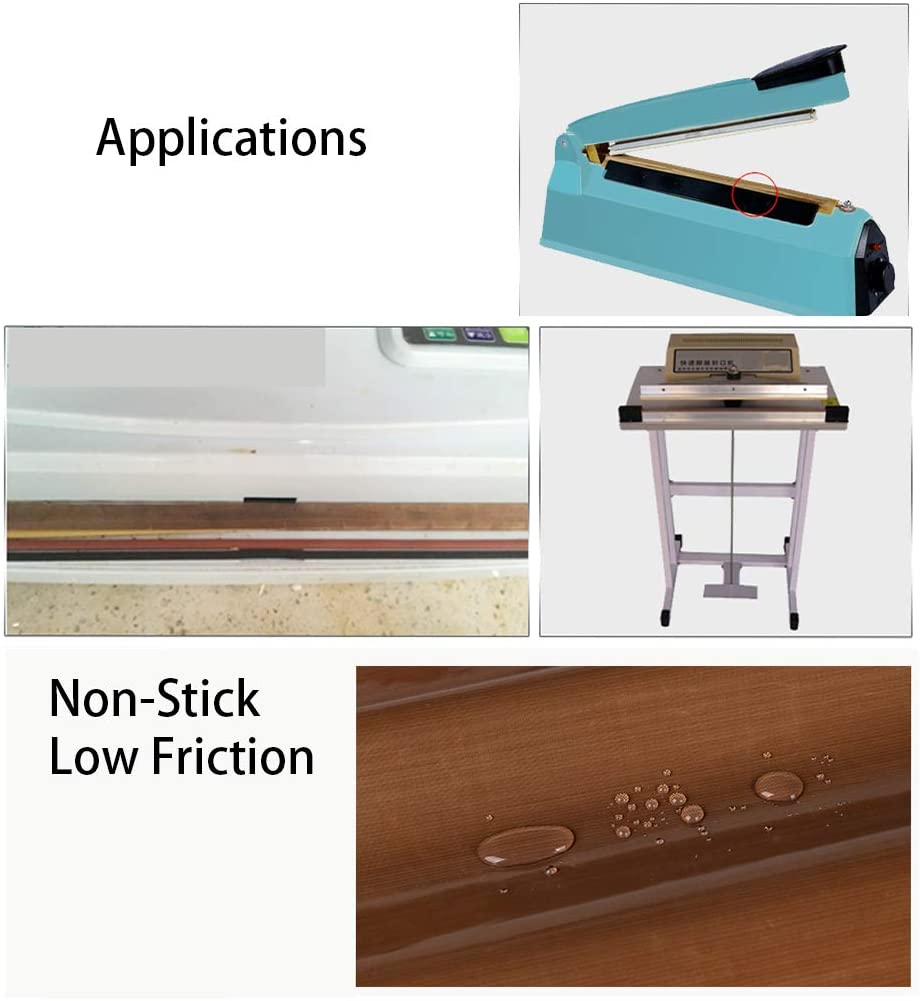

APPLICATION:

  • Vacuum sealers,
  • Wire insulation,
  • Hand / impulse heat sealers
  • Blister formation and form-fill-seal equipment
  • Lining guide rails, chutes and slides.

SPECIFICATION:

  • Backing Thickness: 5 mil
  • Total Thickness: 7 mil
  • Adhesion To Steel: 30 oz./in
  • Tensile Strength: 180 lbs./in
  • Elongation: 5%
  • Dielectric Strength: 3000 volts
  • Operating Temperature Range: -73 °C to 200 °C

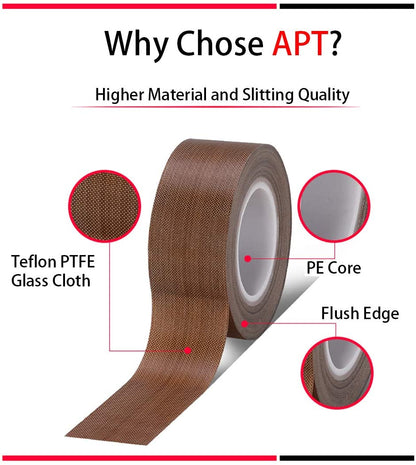

CONSTRUCTION:

  • Backing: PTFE Glass Cloth
  • Adhesive: Silicone
