Advanced Polymer Tape Inc.

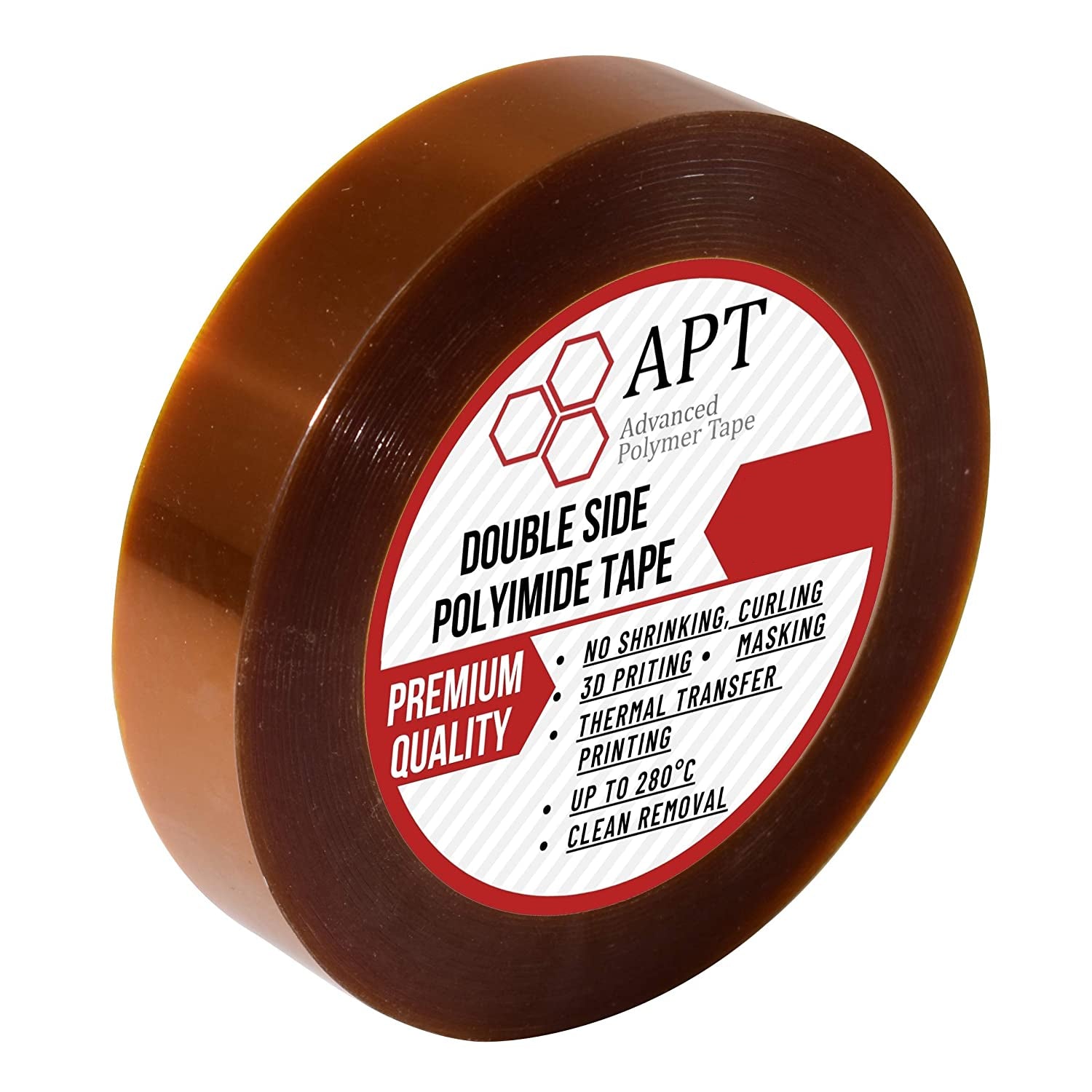

Double Sided Polyimide Tape

Double Sided Polyimide Tape

Regular price $10.99
Regular price Sale price $10.99
Sale Sold out
Shipping calculated at checkout.
Size
Quantity

Request a Quote

View full details

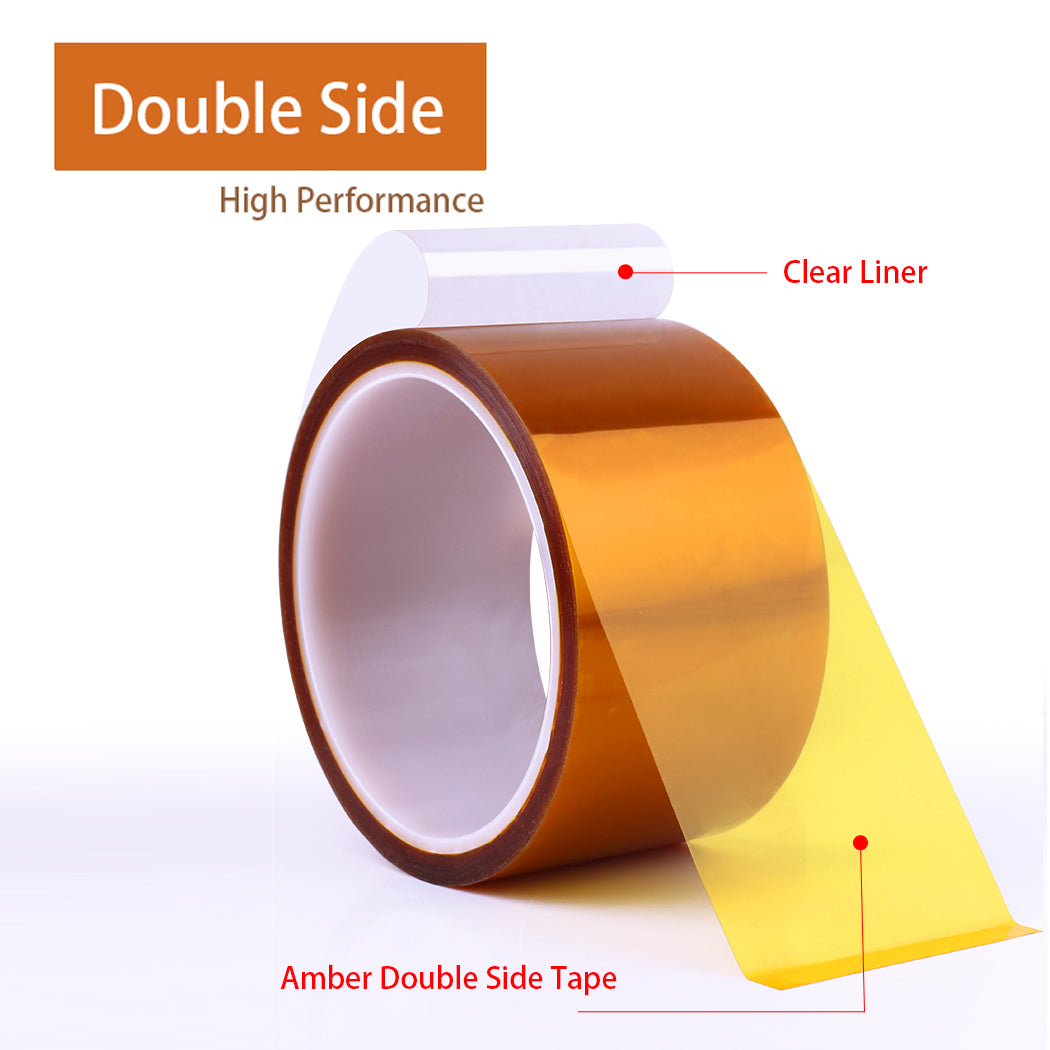

APT Double Sided Polyimide Tape combines polyimide film with silicone adhesive on both sides for applications that need a thin adhesive bond and electrical insulation. The double coated construction lets the tape sit between two compatible surfaces, rather than leaving an exposed film face as single sided tape does. It has a listed total thickness of 4 mil and temperature resistance of 260°C (500°F).

Choose from 1/4-inch, 1/2-inch and 1-inch widths on 36-yard rolls. Select the width to suit the bonding area and evaluate adhesion, heat exposure and removal on your actual materials.

Specifications

Specification Value
Total Thickness 4 Mil
Adhesion 25 oz//inch
Tensile Strength 30 (lbs/inch)
Dielectric Strength 8,000 volts
UL-94 Flammability Rating V-0
Temperature Resistance 260°C (500°F)



Our Double Sided Polyimide Tape may be used as an alternative to:

APT Product Comparable Products
Double Sided Polyimide Tape ·3M 92 · Scapa V706 · Saint-Gobain K100 · Bertech PPT DE

Product suitability may vary depending on application requirements.

Applications

Electronics Assembly
Evaluate double sided polyimide tape for bonding compatible layers or positioning thin parts where the assembly also needs an electrically insulating film. Check the complete assembly against its insulation and operating requirements.

Bonding Thin Films and Layers
Adhesive on both sides allows polyimide tape to join two compatible surfaces in a thin bond line. Check the available clearance, surface finish and required bond strength before selecting it.

Positioning During Heat Processing
Consider the tape for holding compatible parts or layers in position during a heat process that requires adhesion on both faces. Validate the actual temperature, exposure time, pressure and removal conditions; the listed temperature resistance does not establish performance for every process.

Double sided polyimide tape questions

What is double sided polyimide tape used for?

Double sided polyimide tape is used where two compatible surfaces need an adhesive bond with a polyimide film between them. Potential uses include electronics assembly, joining thin layers and positioning parts during heat processing. Select it around the actual surfaces, bond requirements and operating conditions.

What is the difference between single sided and double sided polyimide tape?

Single sided tape has adhesive on one face and an exposed film face on the other. Double sided tape has adhesive on both faces for bonding between surfaces. Choose single sided tape when you need an exposed protective or masking surface; choose double sided tape when both faces need to adhere.

Is double sided Kapton tape the same as double sided polyimide tape?

Kapton® is a brand of polyimide film. Buyers searching for double sided Kapton tape may be looking for a double coated polyimide construction, but not every polyimide tape uses branded Kapton® film. This APT product is described as Double Sided Polyimide Tape; contact APT if your specification requires a particular branded film.

What temperature can this double sided polyimide tape withstand?

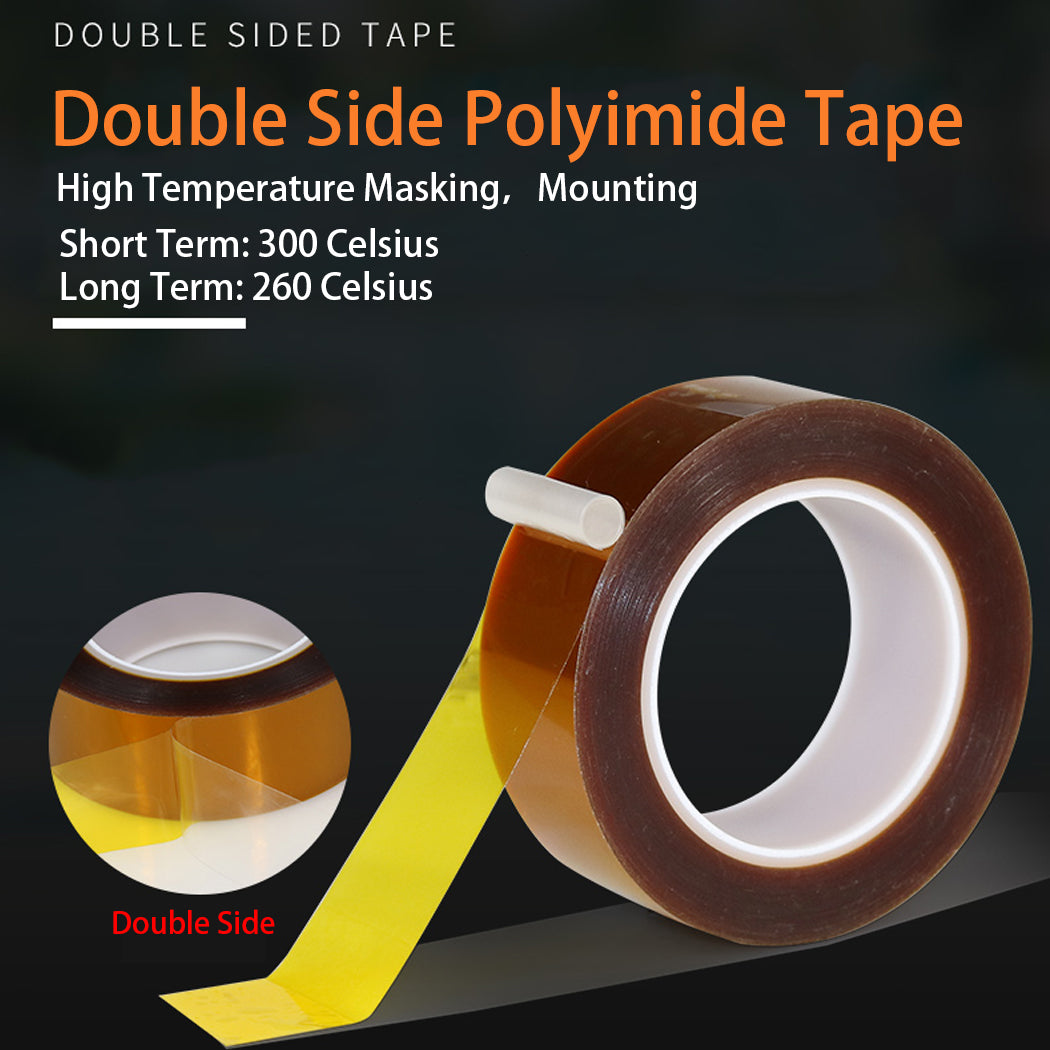

The listed temperature resistance is 260°C (500°F). Confirm suitability for your exposure time, substrate and process conditions before use. A temperature rating alone does not establish continuous service life or bond performance under load.

How thick is this double sided polyimide tape?

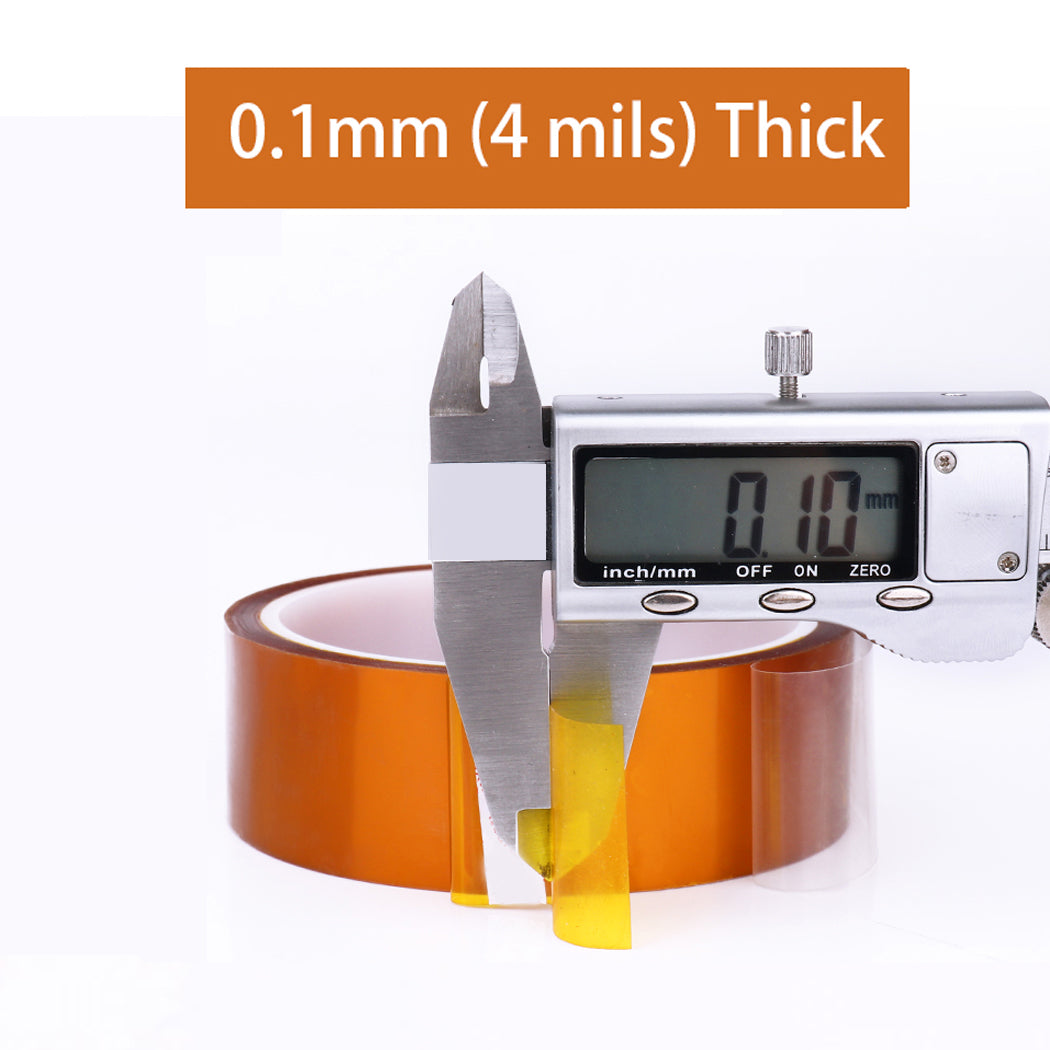

The listed total thickness is 4 mil, equivalent to 0.004 inch or approximately 0.102 mm. This is a total thickness specification, not a separate film thickness. Contact APT for the film and adhesive layer breakdown, thickness tolerances or liner details if your application has a precise clearance requirement.

Is double sided polyimide tape electrically conductive?

This product is intended for electrical insulation, rather than carrying current. Its listed dielectric strength is 8,000 volts; that test value is not a working voltage rating for a finished assembly. Check the insulation design and applicable requirements for your use.

Does double sided polyimide tape leave residue after heating?

The silicone adhesive is designed to support clean removal after heat exposure, but removal results depend on the surface, temperature, exposure time and removal method. Test on the actual material under your process conditions before committing to full application.
