Advanced Polymer Tape Inc.

Polyester Masking Die Cuts

Polyester Masking Die Cuts

Regular price $11.00
Regular price Sale price $11.00
Sale Sold out
Shipping calculated at checkout.
Size
Quantity

Request a Quote

View full details

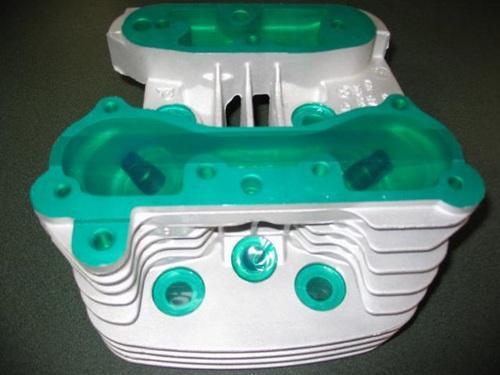

APT Polyester Masking Die Cuts are pre-cut polyester masking dots and discs with a pressure-sensitive silicone adhesive. Designed for powder coating and e-coating, they provide a convenient masking option for circular areas in high-volume production.

  • Backing: 2 mil polyester film
  • Total thickness: 3.5 mil, including 1.5 mil silicone adhesive
  • Listed temperature rating: 400°F / 204°C
  • Standard diameters: 1/8 inch to 2 inches

Polyester masking disc specifications

Property Listed value
Backing Polyester film
Backing thickness 2 mil
Adhesive Silicone
Adhesive thickness 1.5 mil
Total thickness 3.5 mil
Temperature rating 400°F / 204°C
Tensile strength 50 lb/in
Elongation 100%
Adhesion to steel 35 oz/in

Polyester masking dot applications

  • Powder coating
  • E-coating
  • Anodizing and plating, subject to process compatibility

Designed for clean removal after processing. Check temperature, exposure time, surface and chemical compatibility under your actual production conditions before use.

Choose a masking disc diameter

Available diameters: 1/8, 1/4, 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1.5 and 2 inches.

  • 1/8, 1/4, 3/8 and 1/2 inch: 2,000 discs per roll
  • 5/8, 3/4 and 7/8 inch: 1,000 discs per roll
  • 1 and 1.5 inches: 500 discs per roll
  • 2 inches: 250 discs per roll

Discs 3/8 inch or larger include a split-back liner. Split liners for smaller diameters are available on request. Contact us for custom sizes or larger orders.

Compare paper, polyester and polyimide masking dots to select a material for your process.

Polyester masking dot questions

What are polyester masking dots used for?

These pre-cut polyester masking dots and discs mask circular areas during powder coating and e-coating. They can also be evaluated for anodizing and plating, subject to compatibility with the actual process.

What temperature can these polyester masking discs withstand?

The listed temperature rating is 400°F / 204°C. Check exposure time, surface and chemical compatibility under your actual production conditions before use.

Does the 3.5 mil thickness include the adhesive?

Yes. The total thickness is 3.5 mil: 2 mil polyester film plus 1.5 mil silicone adhesive.

What sizes and roll quantities are available?

Standard diameters range from 1/8 inch to 2 inches. The 1/8, 1/4, 3/8 and 1/2 inch sizes have 2,000 discs per roll; 5/8, 3/4 and 7/8 inch have 1,000; 1 and 1.5 inches have 500; and 2 inches have 250. Check the selected product option before ordering.

Do polyester masking dots have a split-back liner?

Discs 3/8 inch or larger include a split-back liner. Split liners for smaller diameters are available on request.

Will polyester masking dots remove cleanly?

They are designed for clean removal after processing. Results depend on the surface, temperature, exposure time and chemicals, so test under actual production conditions.

Are custom masking disc sizes available?

Custom sizes and split liners for smaller diameters are available on request. Contact APT with the required diameter, quantity and processing conditions.
