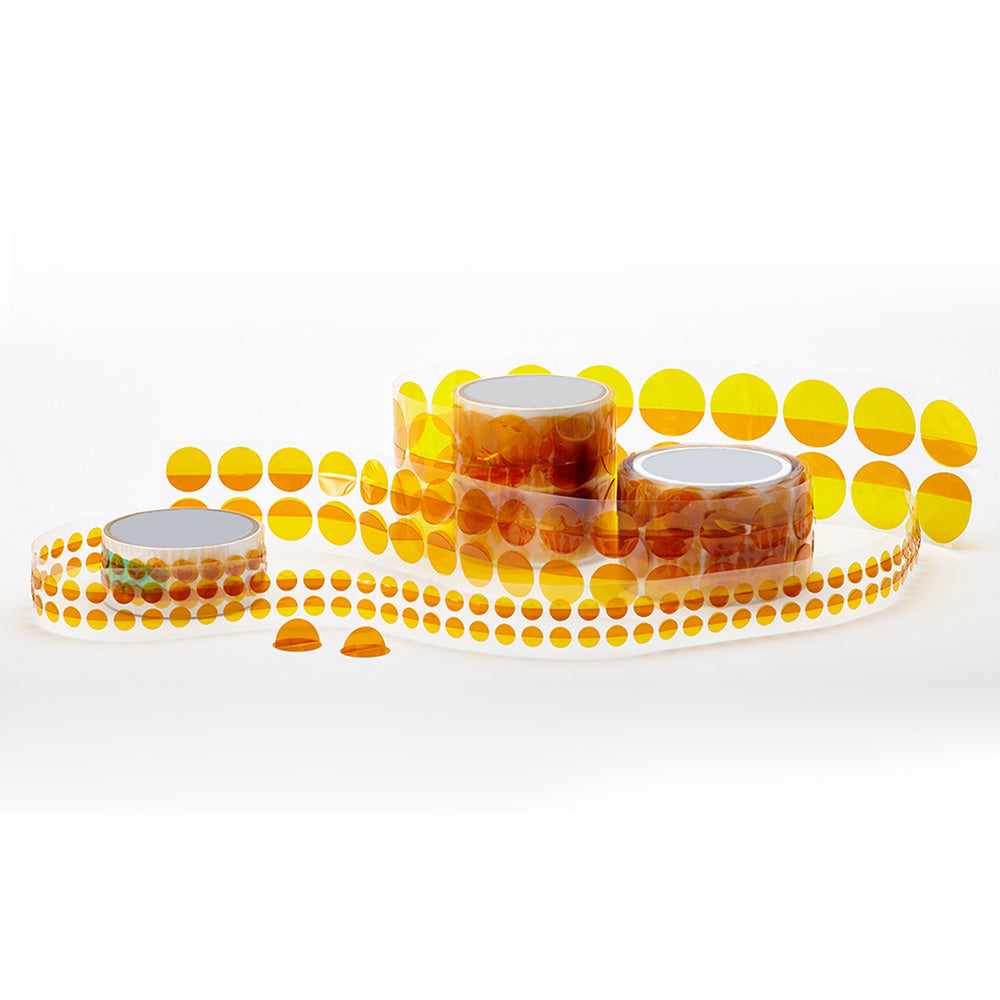

Polyimide Dots

1 review
$12.00
Size

[*Contact us if you need customize size*]

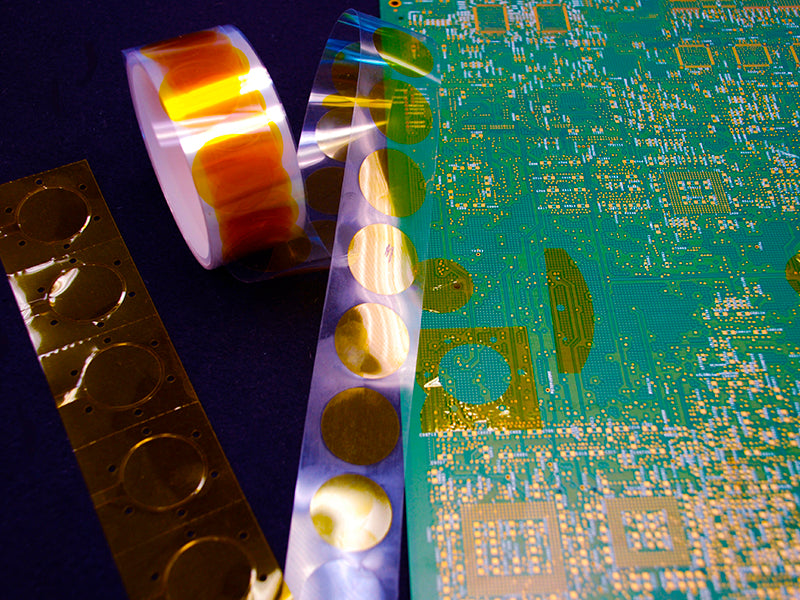

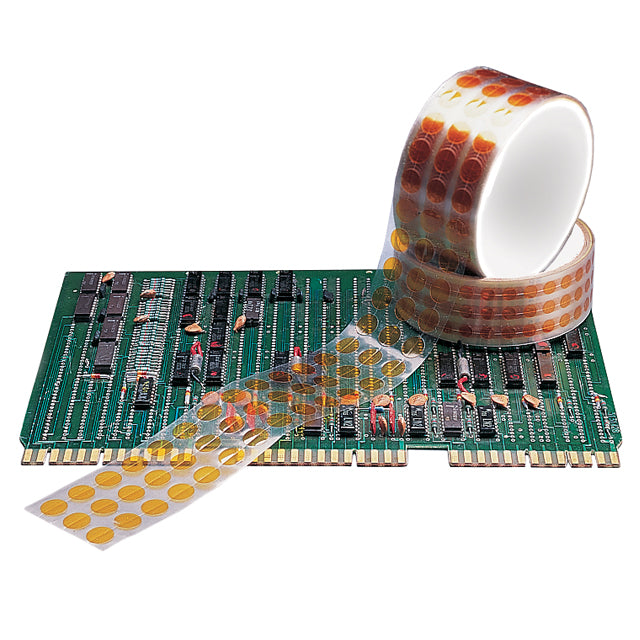

These discs/dots are manufactured from commercial grade polyimide film with a special silicone adhesive. The polyimide carrier is only 1 Mil, making this tape extremely conformable for irregular shapes and surfaces. Designed for high temperature masking found in conformal coating of PCBs, protection of gold fingers during circuit board soldering and electrical insulation of high temperature coils, motors and transformers.

Product Features

  • Temperature Rating: 500° F / 260° C
  • All die cuts 3/8" or larger come standard with a split-back liner. Split liner for smaller dimensions upon request
  • Meets Class H Requirements, flame retardant
  • Excellent dielectric strength and chemical resistance
  • Conformable for uneven surfaces or irregular shapes
  • Removes cleanly even after long bake cycles with no residue
  • Used in Powder Coating, E-Coating, Wave Soldering, Hot Air Leveling, and Circuit Board Insulation
  • Standard die cut sizes in stock or can be made to your specifications

    Specifications

    Carrier

    Adhesive

    Total Thickness Mils

    Tensile Strength (lb./in)

    Adhesion to Steel oz/in

    Dielectric Strength v/mil

    Operating Temperature

    1 Mil Polyimide

    1.5 Mil Silicone

    2.5

    30

    25

    6500

    260
